Phase 2

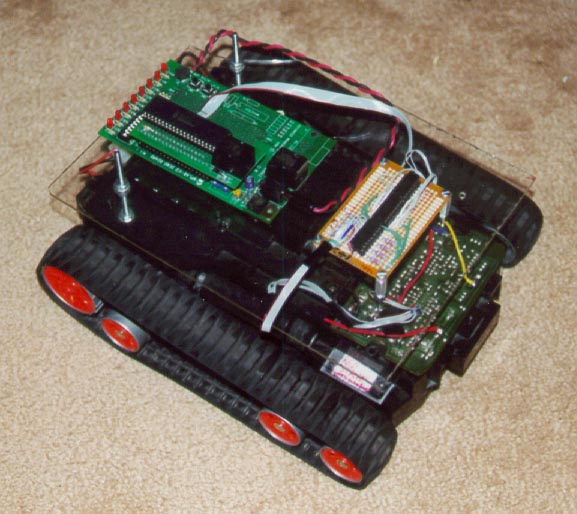

A plexiglas platform has been added to hold the logic circuit and the Microchip PIC 16F877 ICD demo board.
Showing a little more of the rear, with the H-Bridge circuits underneath.

Current development is on the software side. The test program runs the treads fine, now I'm working on a time-slice program to allow multiple tasks. I need some bumper switches too.
